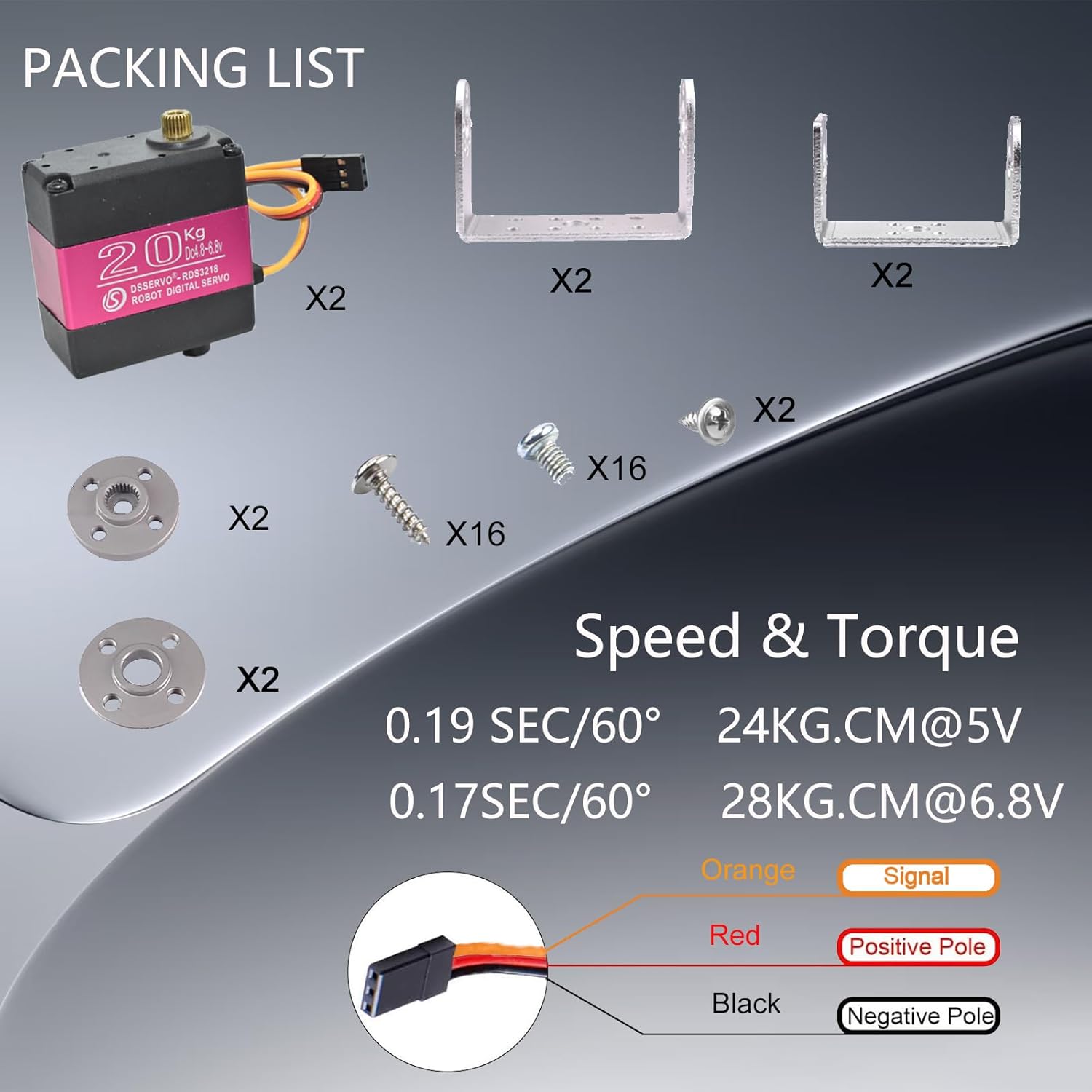

HiRCgo 2Pcs 20KG Digital RC Servo with U Mount Brackets, RDS3218 Dual Shafts Full Metal Gear Steering Servos for 1:8 1:10 Baja RC Cars Buggy Truggy Boat Airplane 180 Degree Description Features: [High Quality and Performance]: This 20kg servo equipped with strong brass gears,high precision potentiometers,CNC aluminium middle shell,watstable chip and waterproof rubber seals screws. Low noise, fast heat dissipation,small friction, fast response, strong anti-interference ability and long working life [Wide Applications]: 20kg digital steering rc servo can be commonly used in robots, robotic arms, mountain bikes, and remote control toys. Also perfectly compatible with 1/8 1/10 baja rc car buggy truggy ect. [PWM Control]: Controlled by pulse width modulation system. Precision control,angle range from 0 to 180 degree within pulse range 500μs-2500μs. Can be rotated within 360 degree when power off. Remote controller(1000-2000μs),rotation angle is 90 degree - High-precision metal gears with hard anodizing - CNC aluminium middle Shell, - Water proof rubber seals screws -Dual shafts rc servo Sepcification: Model: RDS3218MG Stall Torque (5V): 21.5kg.cm Stall Torque (6.8V): 25kg.cm Dead band: 3μs Control Angle:180 Degree (500-2500μs) / 90 Degree (Remote Control 1000-2000μs) Pulse : 500us-2500us Speed : 0.20 sec/60°(5V) / 0.17 sec/60°(6.8V) Operating Voltage: 4.8-6.8 DC Volts Weight: 60 g (2.12 oz) Motor Type: DC Motor Gear Type: Copper & Brass Working frequence: 50-330Hz CE Certification: Yes wire length:12.59 inches(32cm) Size:40*20*40mm (servo), 64*55.6*20mm (Assembly the metal brackets size); Package Included: 2 x RDS3218 20KG Digital RC Servo 2 x Long U-Shape Metal Bracket 2 x Short U-Shape Metal Bracket 4 x Round Metal Disk 2 x Screws Set
| Item Weight | 6.7 ounces |
|---|---|
| Manufacturer | HiRCgo |
| Product Dimensions | 1.57 x 0.78 x 1.57 inches |
| Manufacturer recommended age | 18 years and up |
